Felder Silver Solder AG 104 (AG 145) L-Ag45Sn Flux-Coated
Lieferzeit: 7-10 Tage
Couldn't load pickup availability
Discover suitable special offers and accessories for your welding setup.

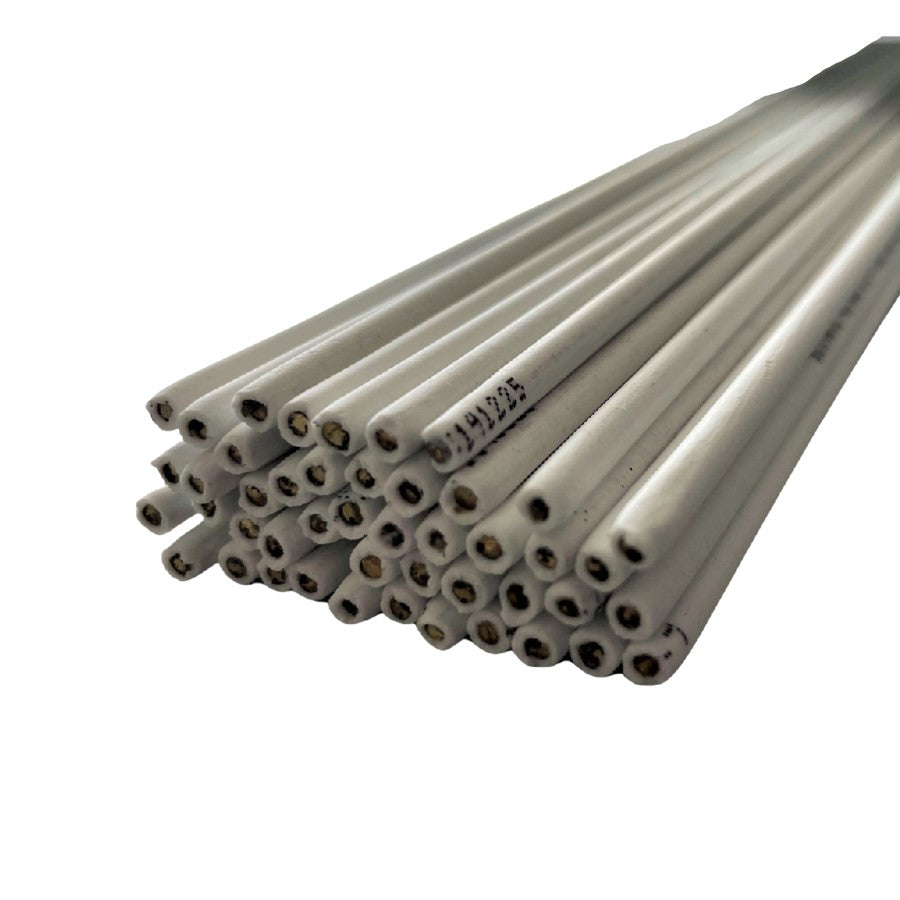

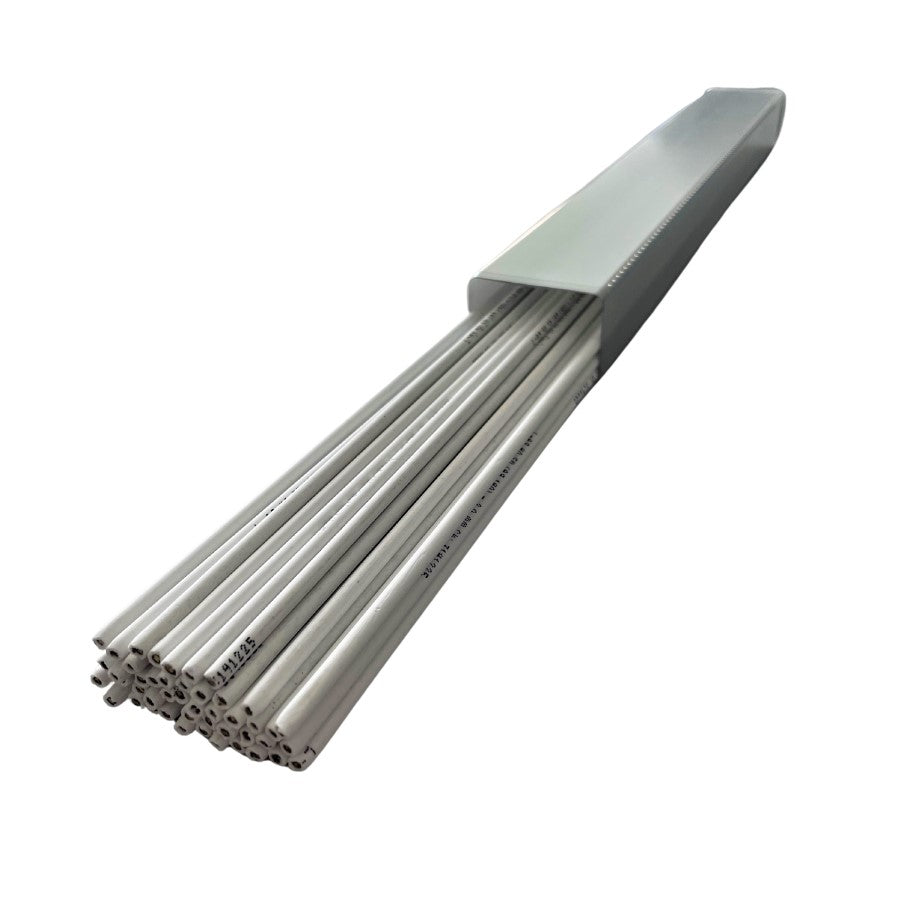

Felder Silver Brazing Solder AG 104 (AG 145) L-Ag45Sn Flux-Coated
- FELDER Silver Brazing Solder AG104 L-Ag45Sn (AG145) with 45% silver content
- Melting range of 640 - 680°C with an operating temperature of 670°C
- Operating temperatures from -200 to +200°C
- Cadmium-free
- Approved according to DVGW worksheet GW 2 for brazing cold and hot water installations
| Alloy according to DIN 8513: | L-Ag45Sn |
|---|---|
| Alloy according to DIN EN ISO 17672: |
AG145 |
| Melting range: | 640 - 680°C |
| Working temperature: | 670°C |
| Permissible operating temperatures: | -200 to +200°C |
| Tensile strength of the soldered joint: | 400 MPa (N/mm²) |
| Density: | 9.2 g/cm³ |
| Composition (in weight-%): |
Ag45 Cu27 Zn25 Sn3 |
| Length: | 500 mm |
Description for Silver Brazing Solder AG 104 (AG 145) L-Ag45Sn:
The silver brazing solder AG104 L-Ag45Sn is particularly suitable for brazing drinking water installations and for use at low temperatures.
It is also used for brazing steel, malleable cast iron, copper, copper alloys, nickel and nickel alloys.
Metal fumes generated during the soldering process are not harmful to health.
Tips for working with Silver Brazing Solder AG 104 (AG 145) L-Ag45Sn
- Clean the brazing point from oxide layers, scale, slag, oils and greases
- Bare solder: Apply sufficient flux to the brazing point and surrounding area; we recommend FELDER flux for silver solders “CuFe P“ or “CuFe No. 1“.
- Heat the workpiece to a working temperature of 670°C and melt the solder
