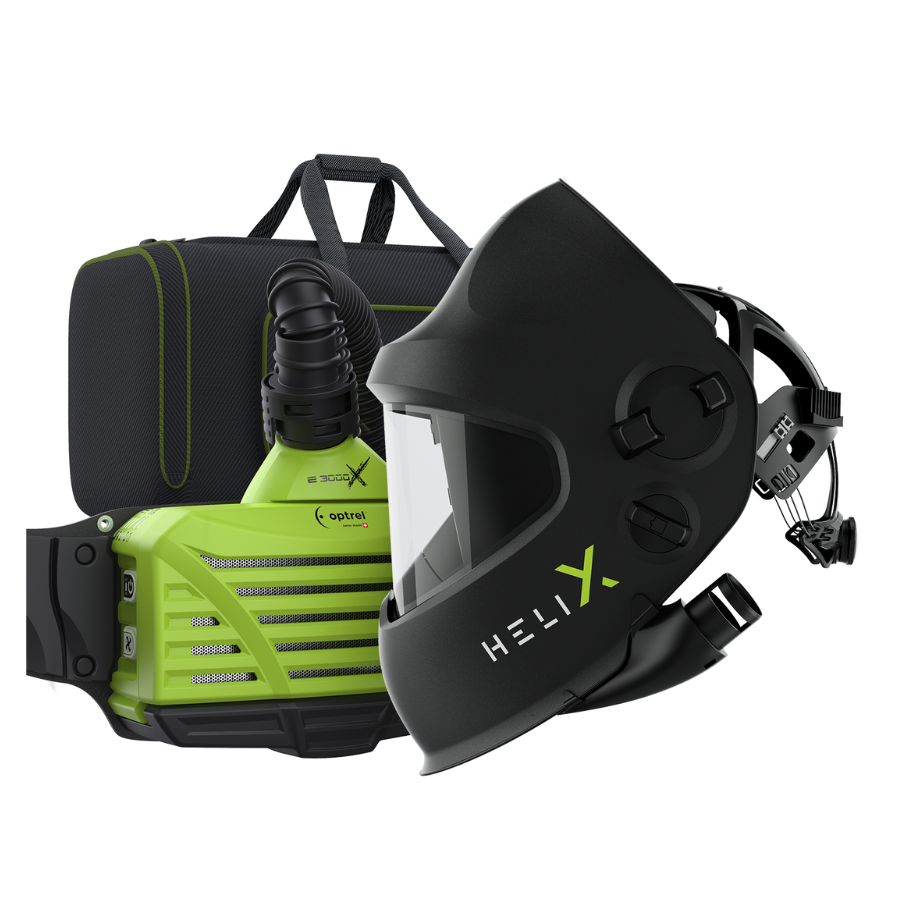

Optrel Helix Air Quattro + e3000x Fresh Air Unit
Lieferzeit: 10-14 Tage
Couldn't load pickup availability
Discover suitable special offers and accessories for your welding setup.
Optrel Helix Air Quattro + e3000x Fresh Air Unit
- Ready-to-weld package helix pure air Quattro - Fresh air slide-up welding/grinding helmet without industrial safety helmet and e3000X
- Panorama XXL field of vision
- Highly robust
- Shadetronic technology (automatic adjustment of the correct shade level) A light sensor continuously measures the intensity of the welding arc and steplessly regulates glare protection across the entire shade level range.
- Fade-out when switching off the shade level after welding
- Isofit® headband
Item No. 4550.615
Scope of delivery:
Optrel Helix Air Quattro PAPR 4550.615 + e3000x fresh air unit,
18h Power Battery, TH3P R SL Filter, Belt,
Charger, parking buddy, bag, instruction manual
Hard work has never been so easy.
The helix quattro is designed for extreme performance. With a shade level range of 4 to 14 and the highest optical classification according to EN379 of 1/1/1/1, it is the ideal protection for heavy and extremely heavy welding tasks, even in extreme confined spaces or viewing angles.
Technical Data Helix Quattro
active, manual: Shade levels 8-13/9-14*
Automatic shade level regulation over the shade level range 4<13M/5-14M* with individual calibration option of ± 2.
0.090 ms at room temperature
0.070 ms at 55°C
dark to light:
0.1 s to 2.0 s (with FadeTronic)
Scattered light class: 1
Homogeneity class: 1
Angle dependence class: 1
Cover lens: up to 137 °C
meets CSA Z94.3
Meets pr ISO 16321 standards "WIG+" ("low amp Tig" process)
Optrel e3000x Fresh Air Unit Set
- Filter type: TH3P R SL filter for TH3P system (EU)
- Dimensions: 222 x 213 x 92.6 mm (LxWxH)
- Hose length: 0.7 m (stretchable up to 1.3 m)
- Low weight of 1560g
- Fuse: Electronic fuse
- Noise level: Max. 70dbA
- Standards: EN 12941:1998 + A1:2003 + A2:2008, AS/NZS 1716:2012, EAC: TP TC 019/2011
** Technical Data **
Description: Powered air-purifying respirator with integrated airflow
sensor and 3-stage adjustable airflow
Protection factor: Protection level TH3 (EN 12941)
Airflow levels:
Level 1: min. 170 l/min
Level 2: min. 210 l/min
Level 3: min. 240 l/min
