Siegmund Rotary Table Height Adjustable Stationary incl. Perforated Plate 1000x1000x18 System 22
Speditionsversand: 7-10 Tage
Couldn't load pickup availability
Discover suitable special offers and accessories for your welding setup.
Siegmund Height-Adjustable Rotary Table Stationary incl. Perforated Plate 1000x1000x18 System 22

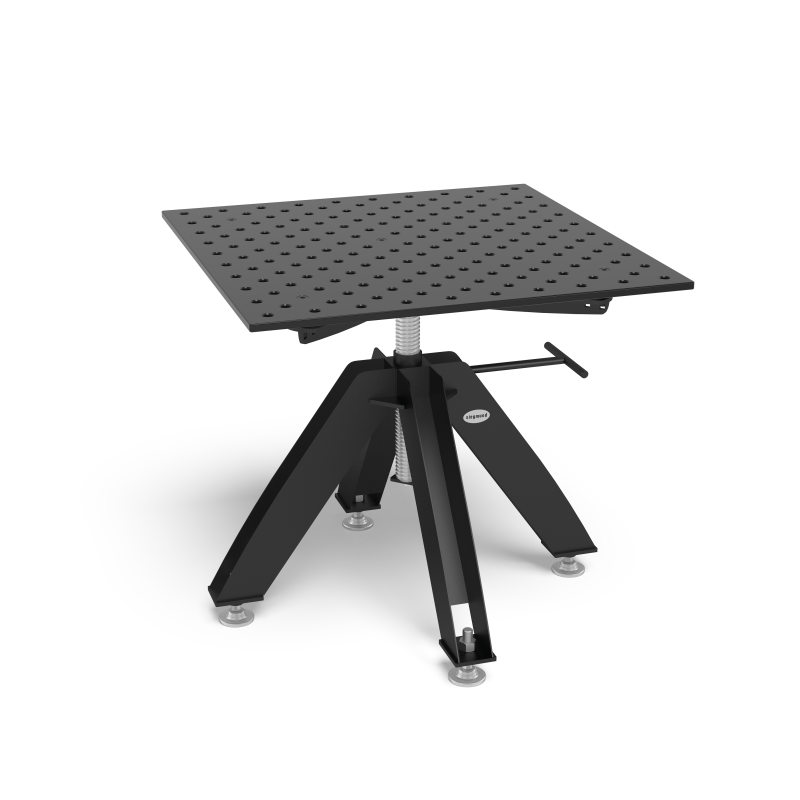

The height-adjustable rotary table from Siegmund offers you a space-saving and ergonomic work surface. By rotating the plate, you can continuously adjust the working height. The locking unit on the side fixes the position of the worktop.
The "Stationary" base frame comes with sturdy foot plates for a secure stand.
Maximum load capacity of "Stationary" or "Mobile" base frame: 1000 kg (without plate)
Perforated plate: high-quality steel S355J2+N,
plasma nitrided and BAR-coated, bore Ø 22 mm, holes surface in diagonal grid, material thickness approx. 17 – 19 mm
Working height between 780 mm and 1100 mm
-
1x 224024.PD
- 1x DS009910
Item number: 2-DS224024.PD
ERP number: 22001521
|
System:
|
 |
|
Length:
|
1000 mm |
|
Width:
|
1000 mm |
|
Height:
|
780-1100 mm |
|
Material thickness:
|
18 mm |
|
Weight:
|
207.00 kg |
Technical Data
Technical Data
Product details
Product details
Choose welding technology based on material, process, performance, and location. For questions regarding accessories, wear parts, or alternatives, we are happy to help.
Notes & Application
Notes & Application
Before use, observe the operating instructions, protective measures, and manufacturer's specifications. Use suitable consumables and regularly check wear parts.
