Stick electrodes ESAB OK 48.00

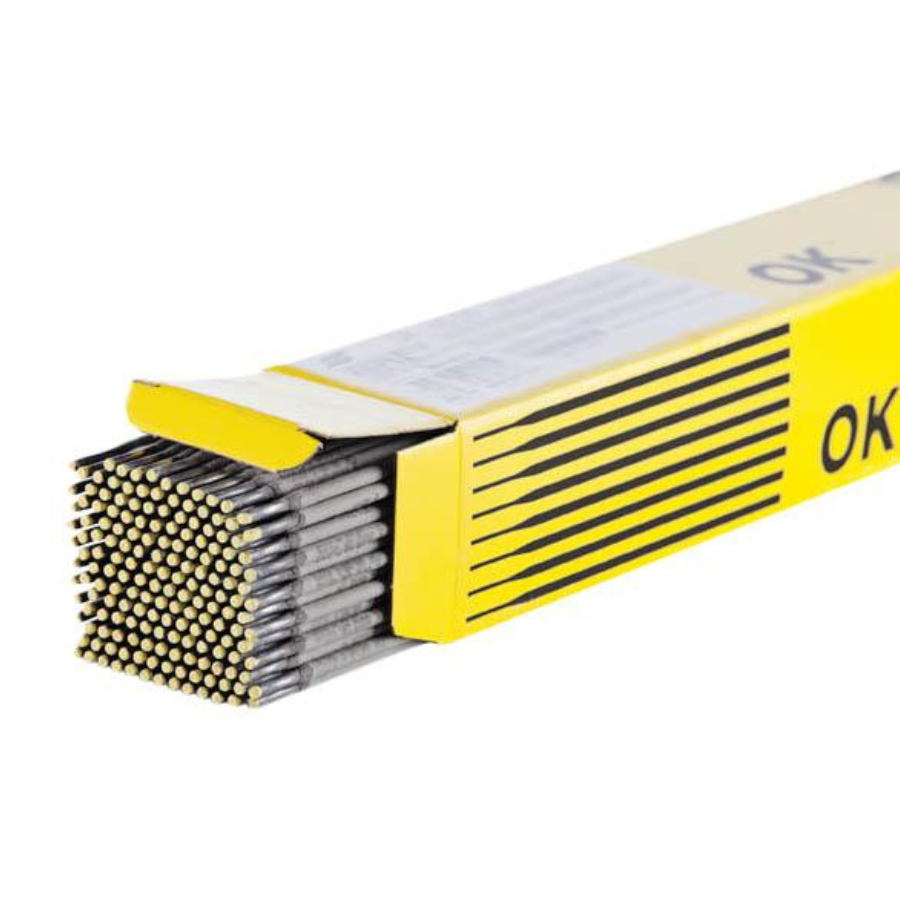

ESAB OK 48.00 Stick Electrode

Non-alloyed and low-alloyed steels

• All welding positions
• Stable arc
• Highest quality
• Very reliable
• High efficiency and productivity



Basic-coated stick electrode applicable in many areas with excellent welding properties for repair and assembly work. Smooth and stable arc. Very low diffusible hydrogen content in the weld metal to reduce the risk of cold cracking. Suitable for all welding positions, except vertical down. Can also be handled by inexperienced welders due to its ease of use. The electrode offers the highest quality from the root pass to the cover pass, unaffected by wall thickness or welding conditions. Excellent weld seam appearance. The electrode reliably offers high
mechanical-technological quality values of the weld metal.

Offers low moisture absorption of the coating.

Pleasant welding behavior, especially for vertical up welds.

General: Civil engineering, energy, industrial and general manufacturing, marine and offshore, light industry



Basic data

Manufacturer: ESAB

Electrode type: B = Basic

Length (mm): 350

Heat treatment: U (unannealed)

Tensile strength (N/mm²): 565



Standard designations

SFA/AWS A5.1 : E7018 H4 R

EN ISO 2560-A : E 42 4 B 42 H5



Approvals

TÜV, DB, CE



Chemical composition (typical values in %)

C - 0.06

Mn – 1.1

Si - 0.5



Mechanical properties of the pure weld metal

Heat treatment: untreated

Yield strength (MPa): >475

Tensile strength (MPa): 565

Elongation A5 (%): 29%

Charpy V-notch impact energy (J):

• -30 °C = 130
• -40 °C = 115



Materials

P235 / S235 - P355 / S355, A32 - 32, A36 - D36



Storage / Re-drying

• Store dry
• Re-drying not generally necessary



Current type/polarity/welding position

DC+(-)

PA, PB, PC, PD, PE, PF



Delivery form



4800253000	OK 48.00 2.5 x 350 mm 4.3 kg / 171 pcs
4800323000	OK 48.00 3.2 x 350 mm 4.4 kg / 115 pcs
4800324000	OK 48.00 3.2 x 450 mm 6 kg / 124 pcs
4800403000	OK 48.00 4.0 x 350 mm 4.6 kg / 86 pcs
4800404000	OK 48.00 4.0 x 450 mm 6.2 kg / 86 pcs
4800504000	OK 48.00 5.0 x 450 mm 6 kg / 56 pcs
48002530G0	OK 48.00 2.5 x 350 mm 1/2 VacPac 1.7 kg / 68 pcs
48003230G0	OK 48.00 3.2 x 350 mm 1/2 VacPac 1.8 kg / 47 pcs
48003240G0	OK 48.00 3.2 x 450 mm 3/4 VacPac 3.9 kg / 105 pcs
48004040V0	OK 48.00 4.0 x 450 mm 3/4 VacPac 4.1 kg / 57 pcs
